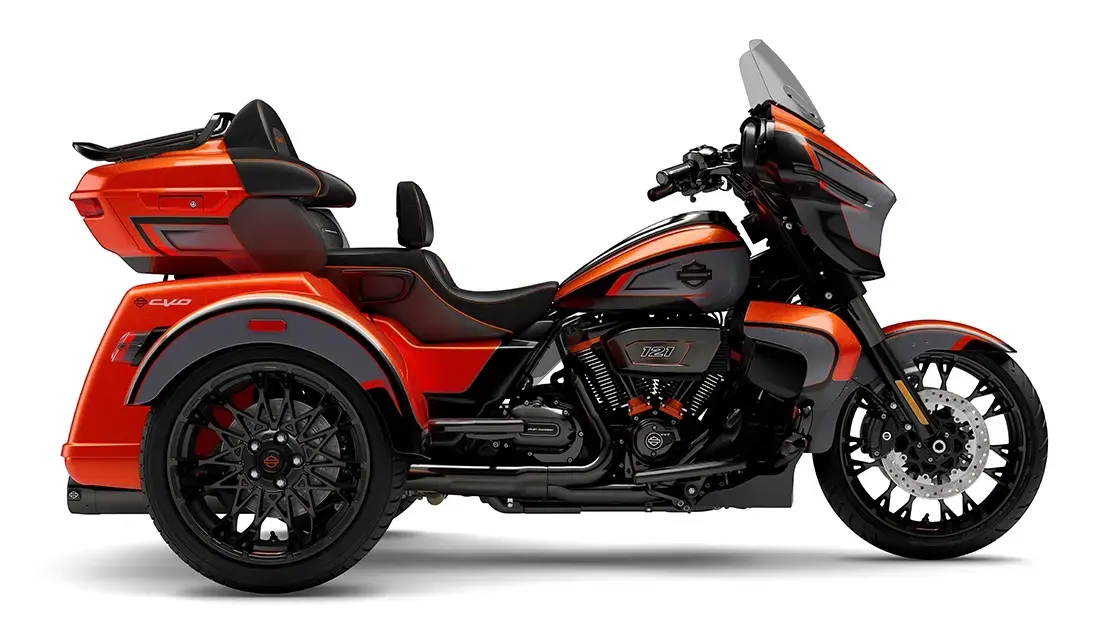

Trust us when we say this is a whole different kind of Trike. At the heart of the CVO Street Glide 3 Limited is the Milwaukee-Eight® VVT 121 motor, paired with a redesigned suspension and a new electric reverse system that make three-wheel touring feel commanding and assured. Heated seats, a trunk, the completely redesigned all-new Grand Tour-Pak®, 12.3” TFT display with Skyline™ OS, premium H-D™ audio, and exclusive CVO colourways elevate this machine into legend territory.

Specifications

Dimensions

add remove
- Length:

  105.7 in
- Seat height, unladen:

  28.9 in
- Rake (steering head):

  26
- Wheelbase:

  67.7 in
- Tires, front specifications:

  130/60B19 M/C 61H
- Tires, rear specifications:

  P215/45R18 83T
- Oil capacity:

  5 qt.
- Weight, as shipped:

  1,243 lbs
- Weight, in running order:

  1283 lb
- Luggage capacity – volume:

  7.1 cu ft (0.201 m3)
Engine

add remove
- Engine:

  Milwaukee-Eight® VVT 121
- Bore:

  4.1 in
- Stroke:

  4.6 in
- Displacement:

  120.64 in³
- Compression ratio:

  11.4:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-1-2 dual exhaust
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  137.9 ft-lb
- Engine torque (RPM):

  3750
- Horsepower:

  114 HP / 85 kW @ 4500 rpm
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  39 mpg (6 l/100 km)
Powertrain

add remove
- Primary drive:

  Belt, 30/70 ratio
- Gear ratios (overall) 1st:

  10.534
- Gear ratios (overall) 2nd:

  7.302
- Gear ratios (overall) 3rd:

  5.423
- Gear ratios (overall) 4th:

  4.392
- Gear ratios (overall) 5th:

  3.742
- Gear Ratios (overall) 6th:

  3
Chassis

add remove
- Front fork:

  1.9 in dual bending valve
- Rear shocks:

  Hand-adjustable emulsion rear suspension
- Wheels, front type:

  Dual Grain, Chrome, 14-spoke
- Wheels, rear type:

  Dual Grain, Chrome, 14-spoke
- Brakes, type:

  Dual floating rotors (front), fixed rotor (rear)
- Brakes, caliper type:

  Front: 32 mm 4 piston fixed, Rear: floating 36 mm piston integrated park brake
Infotainment

add remove
- Infotainment system:

  Skyline™ OS
- Type:

  Full Color TFT
- Watts per channel:

  50
- Speakers:

  6
- Speaker size:

  Two 6.5 in fairing speakers, two 6.5 in Tour-pak speakers, and two 6.5 in lower fairing speakers
- Headset specifications (if equipped):

  Harley-Davidson® Packtalk Edge wireless Bluetooth® headset
- AM:

  Standard
- FM:

  Standard
- SD Card, Flash Drive and MP3 — via USB Connection:

  Supported
- Languages:

  Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Danish, English (UK/USA default), French (Canada/France), German, Italian, Spanish (Mexico/Spain) & Swedish
- Text-to-Speech (TTS) languages:

  Same as Languages list
- Vehicle information screen:

  Standard
- USB:

  USB-C/MTP/Smartphone will work with any phone which has proper adapters to the connection located in the inner fairing storage
- Bluetooth:

  Phone/Media Player, Headset
