For riders who want more out of every mile, the 2026 Low Rider S brings a sharper edge to factory performance. From its rip-ready suspension to the Heavy Breather intake and performance-tuned 2-into-1 exhaust, this machine is built to cut harder, corner sharper, and rev to the limiter. And with the Milwaukee-Eight® 117 High Output motor and standard Rider Safety Enhancements, it’ll let you ride like you were born for it.

Specifications

  • Dimensions
    add remove
    • Length:
      92.9 in
    • Seat height, unladen:
      28.1 in
    • Rake (steering head):
      28
    • Trail:
      5.7 in
    • Wheelbase:
      63.6 in
    • Tires, front specifications:
      110/90B19,62H,BW
    • Tires, rear specifications:
      180/70B16,77H,BW
    • Fuel Capacity:
      5.0 gal
    • Oil capacity:
      5 qt.
    • Weight, as shipped:
      644 lbs
    • Weight, in running order:
      670 lb
    • Tire, type:
      Michelin® Scorcher 31, front and rear
  • Engine
    add remove
    • Engine:
      Milwaukee-Eight® 117 High-Output
    • Bore:
      4.1 in
    • Stroke:
      4.5 in
    • Displacement:
      117.35 in3
    • Compression ratio:
      10.3:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-into-1; catalyst in header
  • Performance
    add remove
    • Engine torque testing method:
      J1349
    • Engine torque:
      128.3 ft-lb
    • Engine torque (RPM):
      4000
    • Horsepower:
      114 HP / 85 kW @ 5000 rpm
    • Lean angle, right (deg.):
      31.3
    • Lean angle, left (deg.):
      31.3
    • Fuel economy testing method:
      Estimated City/Hwy
    • Fuel economy:
      47 mpg (5 l/100km)
  • Powertrain
    add remove
    • Primary drive:
      Chain, 34/46 ratio
    • Gear ratios (overall) 1st:
      9.311
    • Gear ratios (overall) 2nd:
      6.454
    • Gear ratios (overall) 3rd:
      4.793
    • Gear ratios (overall) 4th:
      3.882
    • Gear ratios (overall) 5th:
      3.307
    • Gear Ratios (overall) 6th:
      2.79
  • Chassis
    add remove
    • Front fork:
      Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
    • Rear shocks:
      Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment
    • Wheels, front type:
      Black, Radiate Cast Aluminum
    • Wheels, rear type:
      Black, Radiate Cast Aluminum
    • Brakes, type:
      Front and rear black, Split 7-spoke floating rotors
    • Brakes, caliper type:
      4-piston fixed front and 2-piston floating rear

Request Details

Required
Required
Required
Required
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Disclaimer:

All advertised prices exclude government fees, and taxes, any finance charges, any dealer document processing charge, any electronic filing charge, and any emission testing charge. Disclaimer: Payments based on Grand American Touring In base color, and CVO models in standard colors with 30% down 96 month term, 6.99% APR with approved credit. Sport, Cruiser and Adventure models in base colour with 84 month term. Does not include freight, set-up, tax, title or license. Payments do not apply to specifically priced bikes. See dealer for details. While every reasonable effort is made to ensure the accuracy of this information, we are not responsible for any errors or omissions contained on these pages. Please verify any information in question with dealership.

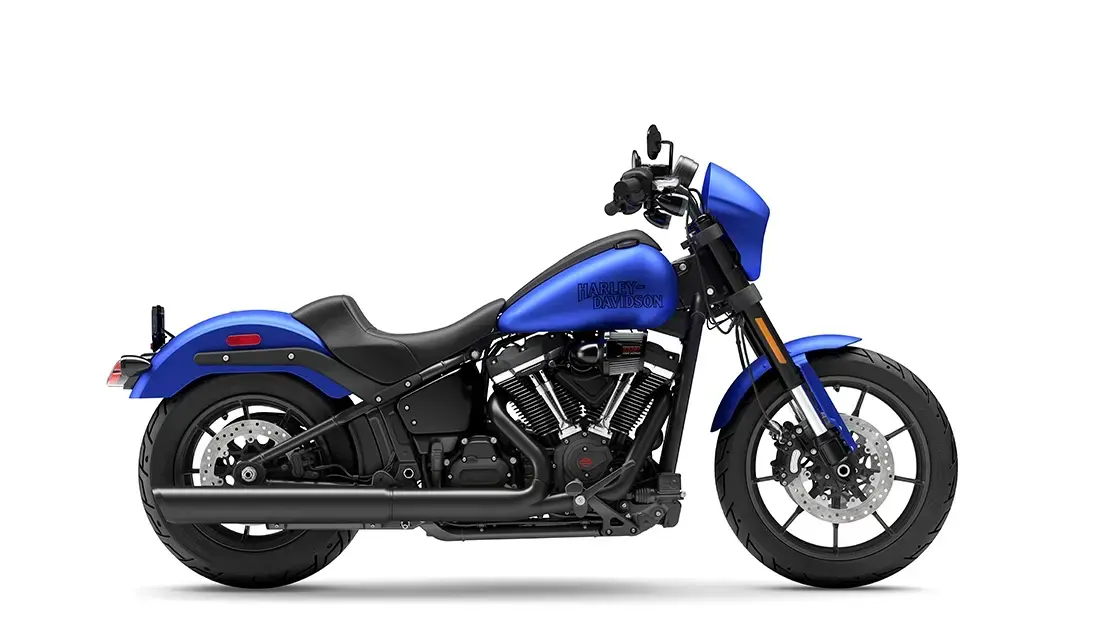

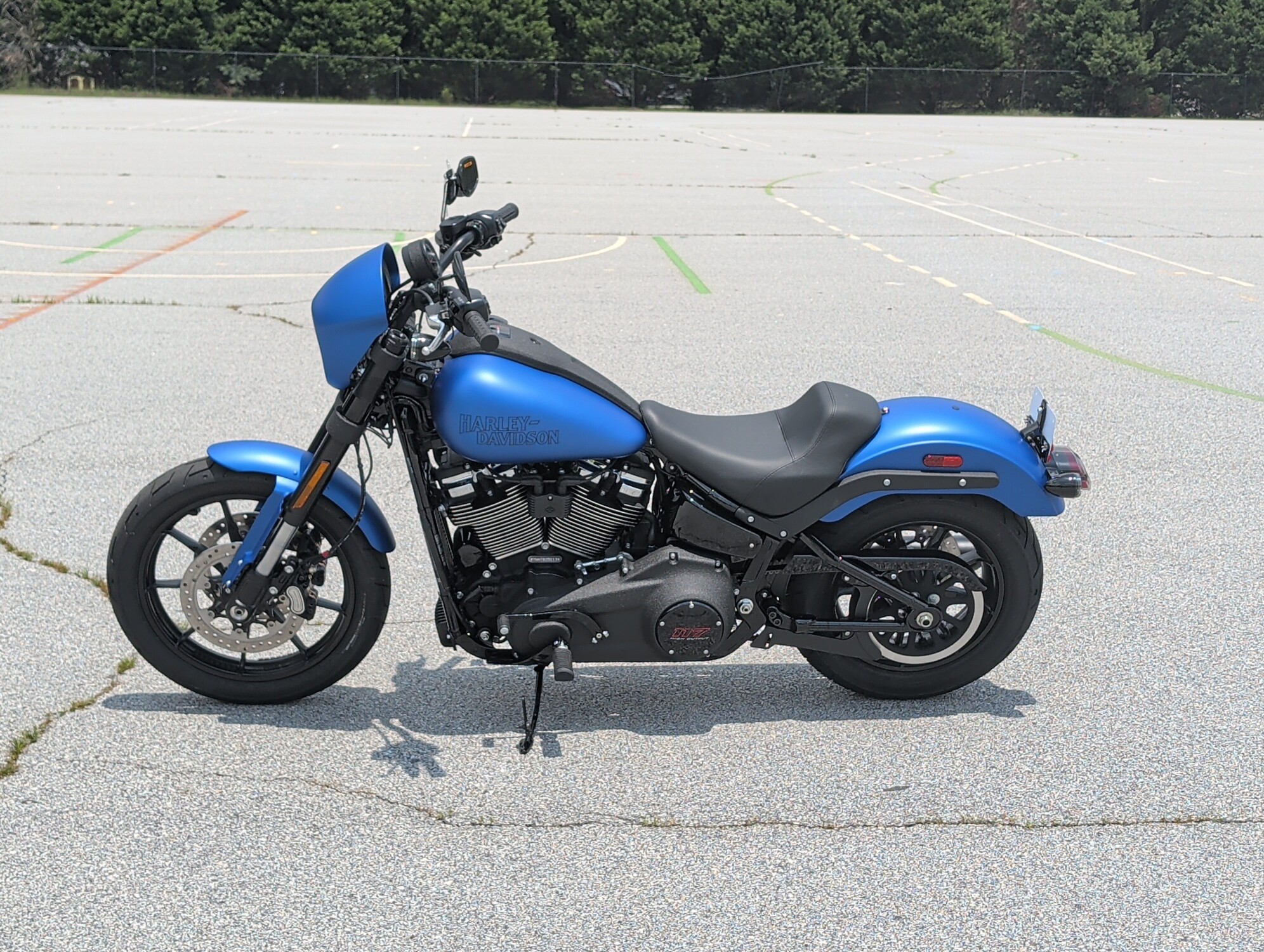

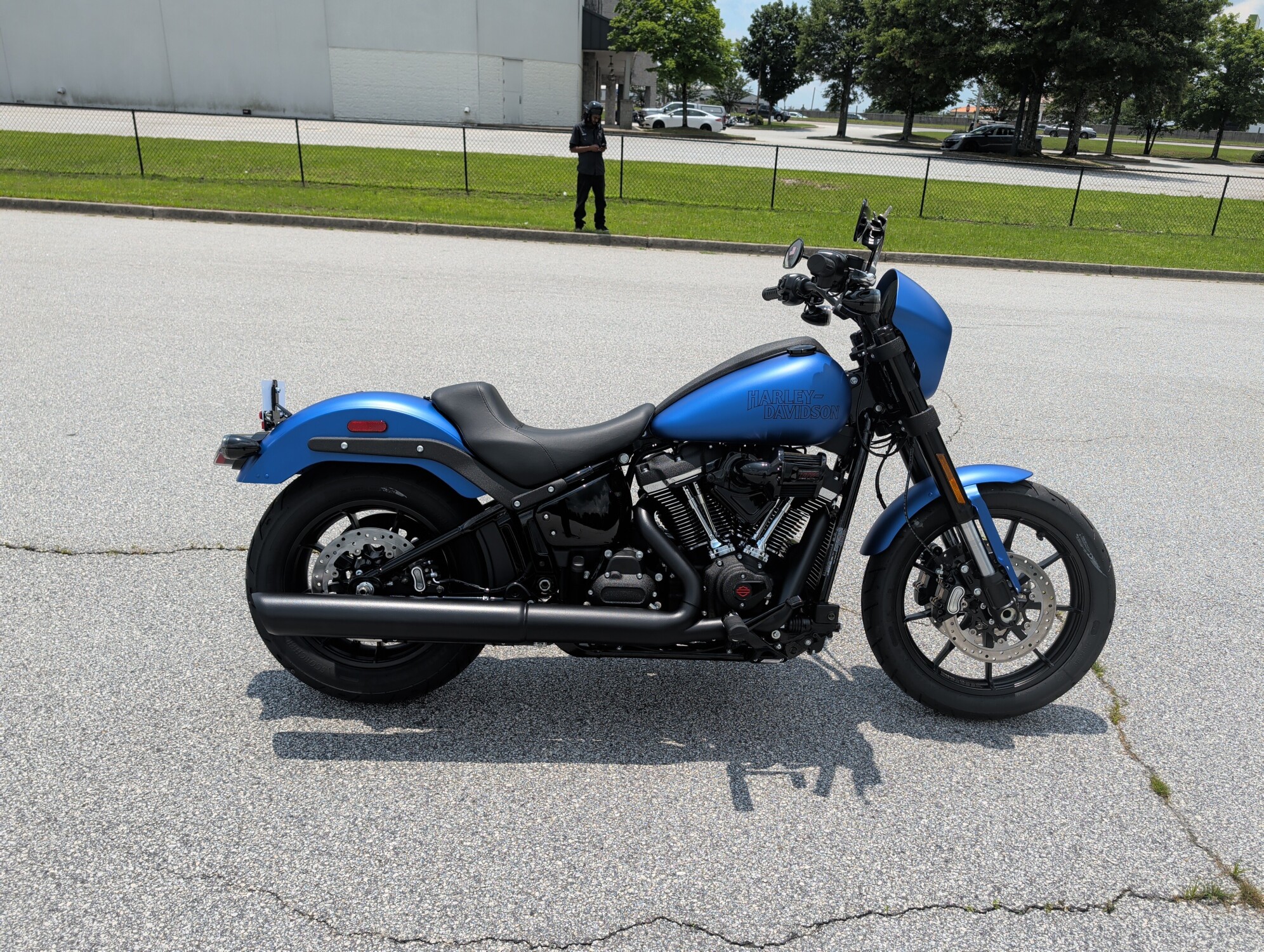

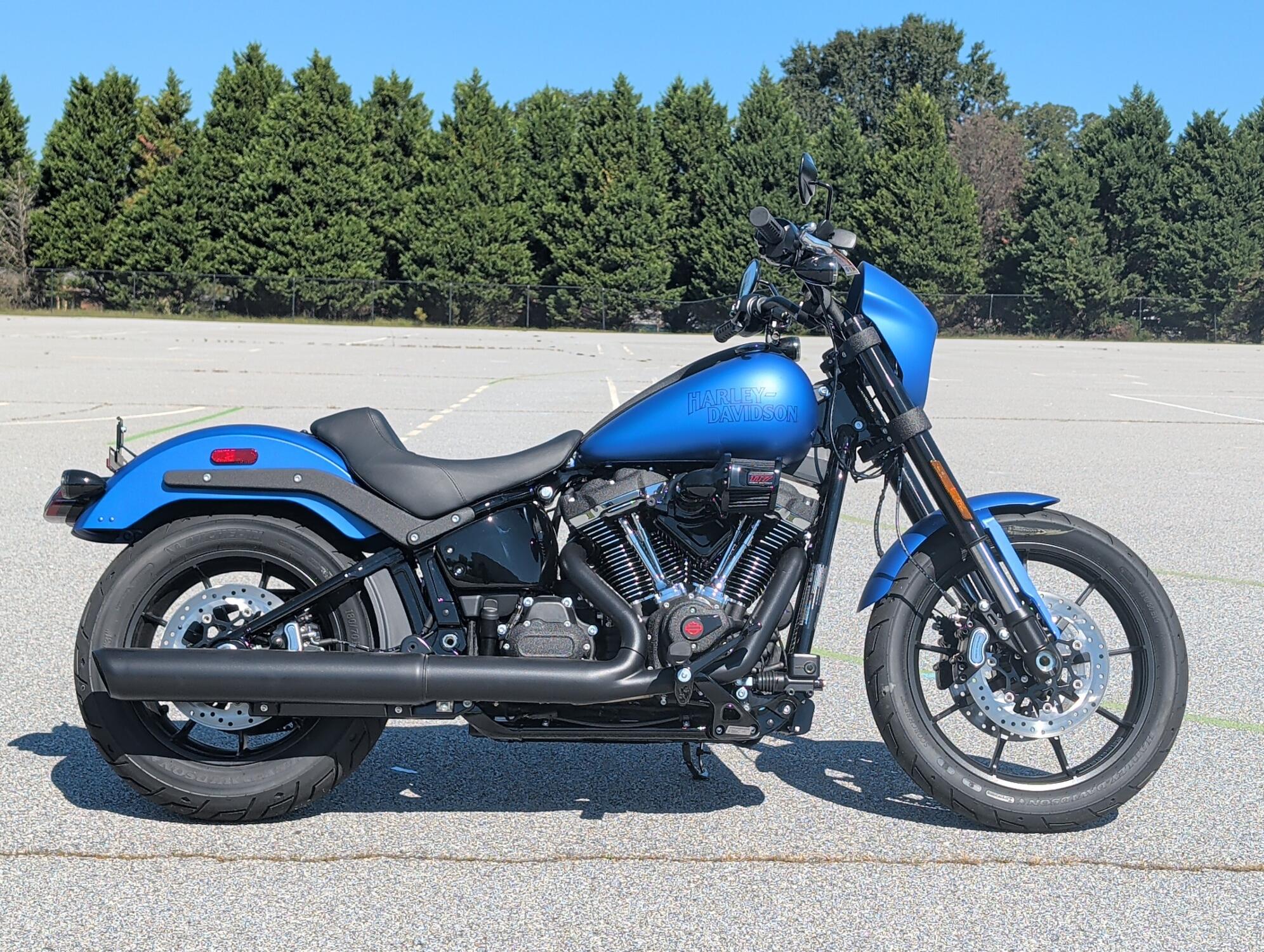

FXLRS 2026 Low Rider® S
