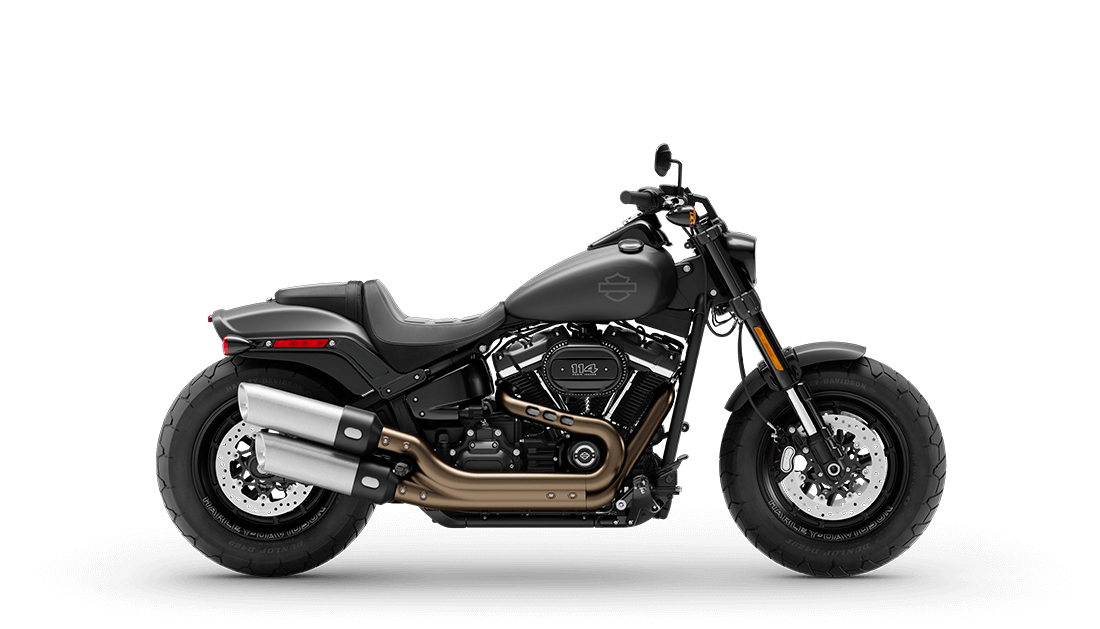

The Fat Bob® is all Harley-Davidson, but at the same time, it’s unlike any Harley® motorcycle that ever existed before. From the modern, aggressive look of its 2-1-2 upswept exhaust and tarmac-devouring fat tyres to the massive torque of the Milwaukee-Eight® engine to the ride of the Softail® frame, inverted front forks and easily adjustable rear suspension, it’s built to shake up the status quo. This is for the rider that wants to break new ground at a high rate of speed.

Available in 107 (1745cc) and 114 (1868cc) engine displacements.

Specifications

  • Dimensions
    add remove
    • Length:
      92.1 in
    • Ground clearance:
      4.7 in
    • Rake (steering head):
      28
    • Trail:
      5.2 in
    • Wheelbase:
      1,615 mm
    • Tires, front specifications:
      150/80-16,71H,BW
    • Tires, rear specifications:
      180/70B16,77H,BW
    • Fuel Capacity:
      3.6 gal
    • Oil capacity:
      5 qt.
    • Weight, as shipped:
      653 lbs
    • Weight, in running order:
      676 lb
  • Engine
    add remove
    • Engine:
      Milwaukee-Eight® 114
    • Bore:
      4.0 in
    • Stroke:
      4.5 in
    • Displacement:
      113.99 in3
    • Compression ratio:
      10.5:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-into-2 shorty dual; catalyst in muffler
  • Performance
    add remove
    • Engine torque testing method:
      J1349
    • Engine torque:
      118.0 ft-lb
    • Lean angle, right (deg.):
      31
    • Lean angle, left (deg.):
      32
    • Fuel economy testing method:
      Estimated City/Hwy
    • Fuel economy:
      0.02 mpg
  • Powertrain
    add remove
    • Primary drive:
      Chain, 34/46 ratio
    • Gear ratios (overall) 1st:
      9.311
    • Gear ratios (overall) 2nd:
      6.454
    • Gear ratios (overall) 3rd:
      4.793
    • Gear ratios (overall) 4th:
      3.882
    • Gear ratios (overall) 5th:
      3.307
    • Gear Ratios (overall) 6th:
      2.79
  • Chassis
    add remove
    • Wheels, front type:
      Denim black, Structure cast aluminum with laser etched graphics
    • Wheels, rear type:
      Denim black, Structure cast aluminum with laser etched graphics
    • Brakes, caliper type:
      4-piston fixed front and 2-piston floating rear
  • Electric
    add remove
    • Lights (as per country regulation), indicator:
      High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel
    • Gauges:
      4-inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication

Request Details

Required
Required
Required
Required
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Disclaimer:

All advertised prices exclude government fees, and taxes, any finance charges, any dealer document processing charge, any electronic filing charge, and any emission testing charge. Disclaimer: Payments based on Grand American Touring In base color, and CVO models in standard colors with 30% down 96 month term, 6.99% APR with approved credit. Sport, Cruiser and Adventure models in base colour with 84 month term. Does not include freight, set-up, tax, title or license. Payments do not apply to specifically priced bikes. See dealer for details. While every reasonable effort is made to ensure the accuracy of this information, we are not responsible for any errors or omissions contained on these pages. Please verify any information in question with dealership.

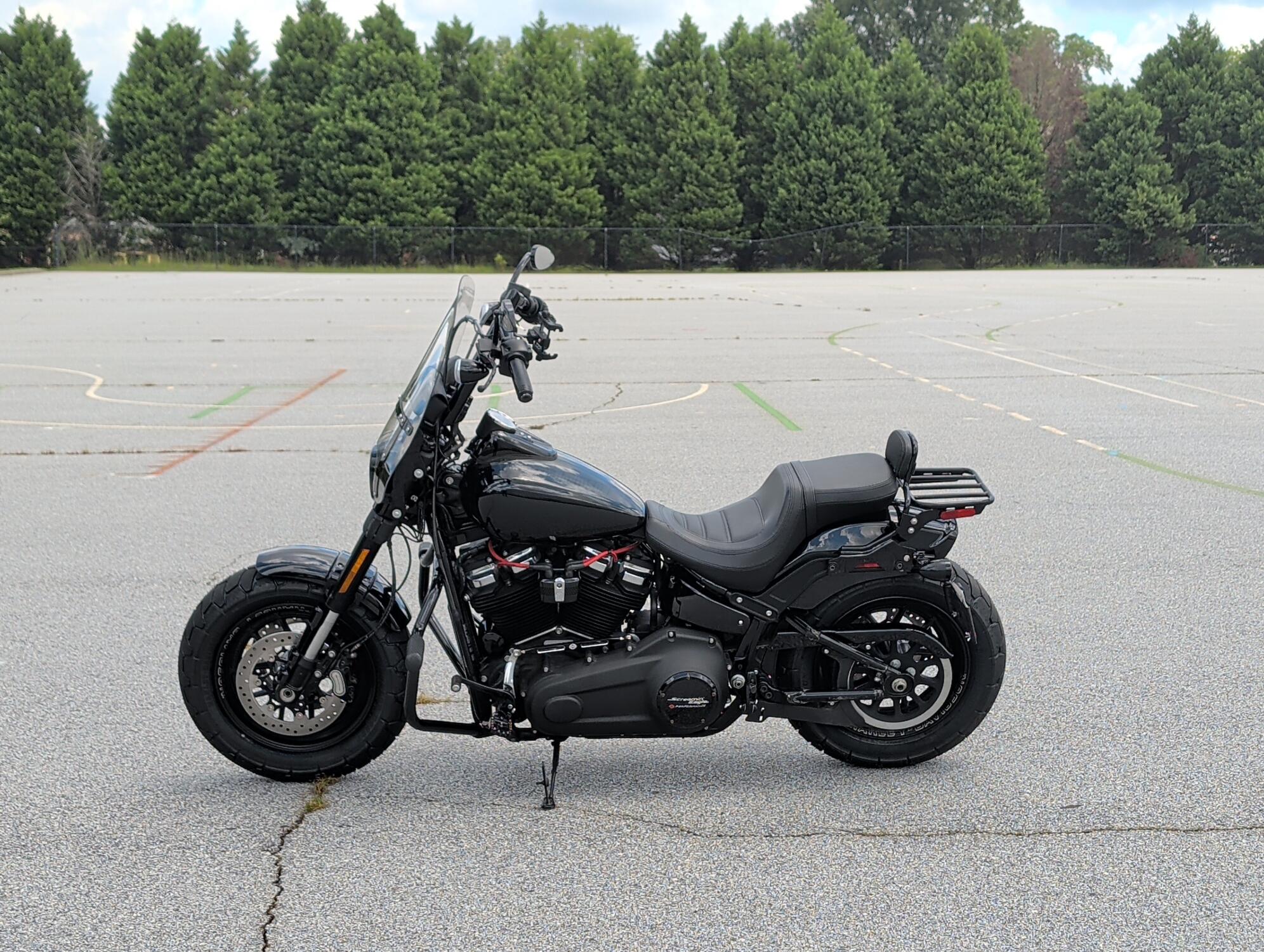

FXFBS 2020 Fat Bob® 114

Price: $13,999
BLB015059
1HD1YLK12LB015059
Harley-Davidson®
Softail
Pre-owned
2020
13816 mi
BLACK
